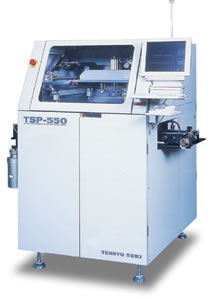

| Applicable PCBs |
Dimensions |
Min. X50×Y50
Max. X335×Y255mm
t 0.4mm to 4.0 |
| Thickness |
Min.0.4mm-Max.4.0mm |
| Fixing |
standard:Edge clamp
Option:Vacuum Suction |
| Applicable Metal Mask |
Mask size |
X650×Y550mm
X550×Y650mm
Adapter(option)is required for size other than above. |
| Mask origin |
FrontCenter |
| Operation |
OS |
Windows NT 4.0 |
| Input |
Track Ball
(Option:Touch Screen) |
| PCB Transfer |
Conveyor Width Adjustment |
Manual(Option:Automatic) |
| PCB support |
Supporting Pin Plate(Option:Jig) |
| Transfer Base |
Front |
| Direction |
Right→LeftLeft→Right(Choice) |
| Printing |
Direction |
Front⇔Rear |
| Squeegee Speed |
1to220mm/sec |
| Print Pressure Control |
Low Plressure Cylinder Unit |
| Release Control |
Speed 0.01 to 2.00mm/see.
Range 0 to 2.0mm
Controlled by Program |
| Automatic Cleaning System |
Operation |
WetDry,
Combined Operation,Frequency Pre-determination,Motion in X and Y |
| Option |
Metal Mask Clogging
Inspection
Automatic Mark Search |
| Cycle Time |
Line Cycle Time |
Approx. 13.5 |
| Other Than Printing |
Approx. 6.5
(Including Image Recognition Time) |
| Print |
Accuracy |
less than ± 0.01mm |
| Appearance |
width |
890mm(1,300mm including conveyor) |
| depth |
1,160mm |
| height |
1,500mm
(Excluding Signal Tower) |
| weight |
Approx. 750kg |
| Power |
AC 200V
3.2KVA |
| Flow Rate |
30Nl/min |
| Air Source |
0.5MPa |
