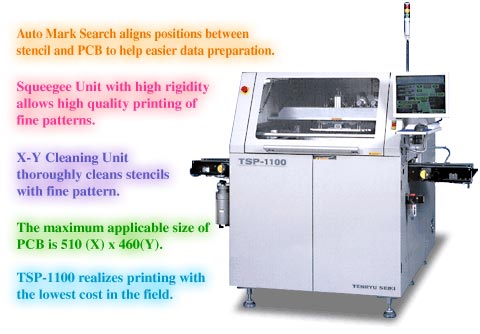

| Board |
Size |
Min. X50×Y50mm
Max. X510×Y460mm |
| Thickness |
Min.0.4mm to Max.4.0mm |
| Fixing |
standard:Edge clamp
Option:Vaccum |
| Stencil |
Size |
X650×Y550mm to X750×Y750mm |
| Origin |
Center Front |
| Operation |
OS |
Windows NT 4.0 |
| Input operation |
Mouse |
| PCB Feed |
Conveyor width adjustment |
Manual(Option:Automatic) |
| PCB support |
Support pin plate (Option:Jig) |
| Line Feed |
Front |
| Feed Direction |
Right→LeftLeft→Right(Selectio) |
| Print operation |
Print Direction |
Front⇔Rear |
| Squeegee velocity |
1 to 220mm/sec |
| Print pressure control |
Low pressure cylinder unit |
| Auto seach |
Standard |
| Printing Apart control |
Speed 0.01 to 10.0mm/sec.
Range 0 to 5.0mm
Controlled by Program
Contact Printing
Acceleration Control |
| Automatic cleaning System |
Operation |
WetDry,
Combined Operation,Frequency Pre-determination,Motion in X and Y |
| Option |
check the jum in the metal mask
check the solder Condition of PCB |
| Tact |
Line tact |
About 19 sec. (Squeegee feed velocity : 30mm/sec.) |
| Except printing |
About 9 sec. (Including vision recognition) |
| Printing accuracy |
Accuracy |
±0.015mm |
| External dimensions |
width |
1,100mm(1,950mm including conveyor) |
| depth |
1,605mm |
| height |
1,500mm
(Excluding signal tower) |
| weight |
About 1,000kg |
| Power |
AC 200V Single Phase
3.2KVA |
| Flow Rate |
44Nl/min |
| Air |
About 0.5 Mpa |
