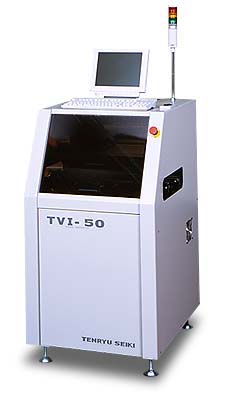

TVI-50
SOLDER PASTE VISUAL INSPECTION MACHINE

This is the machine to inspect the condition of printed solder paste,being joined in a production line of printed circuit boards.
Using CCD Camera,location,length and area of circuit pattern are measured and compared with the pre-registered pattern to inspect for "Displacement","Fracture","Blots"and"Bridges".
Feature

High Resolution
Resolution:Approx.20μs
View:9mm×9mm
Compact Size
TVI-50 saves space. It's like abuffer conveyor.
Easy Operation
Loading Gerberdata and easy teaching are availabie.
Low Price
Necessary and minimum functions and performance realize the unchal-lenged cost-effectiveness.
Specifications Available PCBs Min. X50×Y50mm to
Max. X350×Y280mm
t0.4 to 4.0mm
Camera View Approx. 9×9mm
Res. Approx. 20μm
Speed Ave. 0.45/view
Items Displacement/Fracture/Blots/Bridges
Capacity Maximum Data Registration 500 patterns
Data Input Gerber Date Loading,Real Board Teaching
Data Storage HD(Hard Disk)
PCB Transfer Right→Left(Left→Right)
Conveyor Base Position Front Base
Utility 200-240VAC
Air Source 0.4MPa
