| Features |

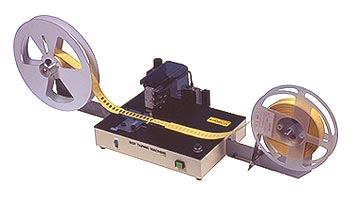

The TTM-M10 is for surface-mounting electronic parts onto adhesive paper tape. Pressing the starter switch after work pieces have been set in place, the tape is fed pitch by pitch, with the PPU picking up work pieces, transporting them to where the tape is positioned, and mounting them onto the tape.
|
| Specifications |
Kinds of tape used |
32-mm wide adhesive paper tape |
| Work pieces handled |
|
A |
B |
L |
H |
| min |
6.5 |
4.2 |
5.0 |
1.5 |
| max |
13.0 |
11.0 |
20.0 |
2.8 |
|
The "C" dimension should be 0.5mm or less. |
| Tape feed pitch |
12mm, 24mm (a one-touch switch-over method is used.) |
| Cycle time |
4 sec./cycle |
| Power source |
AC 100V, 1A, 50/60 Hz. |
| Pneumatic pressure |
0.4 MPa |
| Exterior dimensions |
850 (W) × 310 (D) × 230 mm (inclusive
of reel receivers at both ends and pneumatic filters positioned
in the rear). |
| Weight |
Approx. 8kg |
|
