| Features |

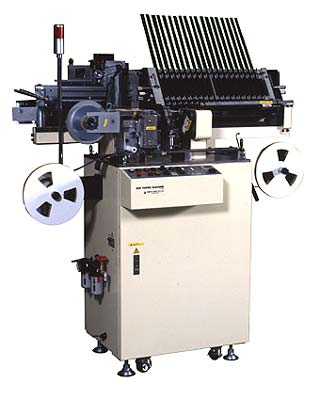

This TTM-EXO1CS SOP taping machine is used to automatically tape SOPs of different sizes loaded in the magazine onto an adhesive paper tape or embossed tape in a process preparatory to subsequent automatic insertion into motherboards. Changeover of transport of SOPs -- even those of different sizes -- can be achieved in a short time by simply changing the jigs used. This machine can also be used with SOJs (Small Out-line J-lead) packages, etc. Machine operation, stick mounting/dismounting and step change can be achieved with ease on the front panel. As for the moving sections of this machine, a cum-drive and an air-pressure drive are used separately for the sake of structural simplicity and safety. Scrupulous care has been taken to protect the winding tape and component parts from possible damage. Two 6-digit programming counters are provided to make it possible for the machine to stop automatically after a prescribed number of sticks have been loaded. Pre-operation arrangements can be carried out independent of the machine using a spare magazine (sold separately), allowing for enhanced operational efficiency. Equipped with the very essence of our proprietary mechanical engineering technology, the TTM-EX01CS is a trustworthy SOP taping machine known for its flexibility and proven reliability.
|
| Specifications |
Kinds of tape used |
32 mm-wide adhesive paper tape |
| Plastic embossed tape (12, 16, 24, 32, 44-mm wide) |
[Selection of tape]
Tape is chosen using top tape guides of the following dimensions
of(9.5±0.1,13.5±0.1,21.5±0.1,26.5±0.1,37.5±0.1(mm).) |
| SOPs handled |
|
A |
B |
L |
H |
| min |
6.0 |
4.2 |
5.0 |
1.5 |
| max |
12.0 |
9.0 |
20.0 |
2.8 |
|
- Lmax = 20 with adhesive paper tape.
- With embossed tape, there exist dimensional correlations between the tape used and the SOPs handled depending on the specifications.
- No tape remnants can be detected except with black tape (embossed tape).
|
| Number of sticks mounted |
20 sticks (max.) |
| Taping speed |
1.0 sec. (more or less) per piece |
| Reel diameter |
maxφ360mm |
| Counter |
6-digit counter for pre-setting |
| Feed pitches |
8mm, 12mm, 16mm, 29mm, 24mm (set using a digital switch) |
Sticks used
(cross-sectional dimensions: xxx ) |
|
Width |
Height |
Length |
| min |
8 |
5 |
200 |
| max |
20 |
10 |
550 |
|
|
| Thermo-compression bonding heads |
|
Setting atnormal temp |
Compression-bondingstrength |
Half-cycle time |
| min |
Normal temp |
2kg |
0.2sec |
| max |
200°c |
7kg |
2.0sec |
|
|
| External dimensions |
1320 [W] × 550 [D] × 1315 [H] (Unit: mm) |
| Machine weight |
Approx. 100kg |
| Power source |
AC 200V |
| Pneumatic pressure |
0.5MPa |
