| Features |

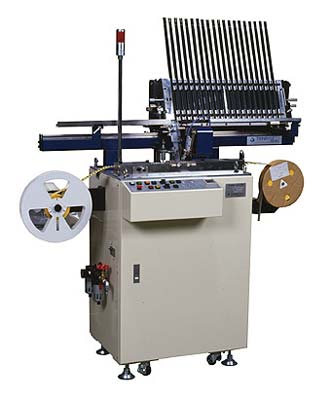

The TTM-EXO1CS is used to automatically tape magazine-loaded SOPs of different sizes on to a 32mm adhesive paper tape preparatory to subsequent automatic insertion into motherboards. Machine operation and stick mounting/dismounting can be achieved easily on the front panel. This machine's operating section is constructed separately with a cum-drive and an air-pressure drive for the sake of structural simplicity and to enhance safety. Scrupulous care is taken to protect the winding tape and component parts against damage. Two 6-digit programming counters are provided to make it possible for the machine to stop automatically after a prescribed number of sticks have been loaded. Pre-operation arrangements can be carried out independent of the machine using a spare magazine (sold separately), allowing for enhanced operational efficiency. Equipped with the very essence of our proprietary mechanical technology, the TTM-EX01CS is a trustworthy SOP taping machine known for its flexibility and proven reliability. |
| Specifications |
Tape used |
32-mm wide adhesive paper tape |
| Sticks used (cross-sectional dimensions) |
Width: Min. 9 to max. 20 |
| Height: Min. 5 to max. 10 |
| Length: Min. 200 to max. 550 |
| SOPs handled |
|
A |
B |
L |
H |
| min |
6.5 |
4.2 |
5.0 |
1.5 |
| max |
13.0 |
11.0 |
20.0 |
2.8 |
|
*Please consult us in advance when mold's underside is found levitated from the lead surface. |
| Number of sticks mounted |
Max. 20 sticks |
| Taping speed |
1.5 sec. (more or less) per piece
(with 12 pitches) |
| Taping pitches |
12mm or 24mm (adjusted by means of a switch) |
| Reel diameter |
φ320 max. |
| Counter |
6-digit pre-settable counter |
| Exterior dimensions |
1,320 [W] × 550 [D] × 1,315 [H] (Unit: ?) |
| Machine weight |
Approx. 90kg. |
| Power source |
AC100V |
| Pneumatic pressure |
0.5MPa |
