| Features |

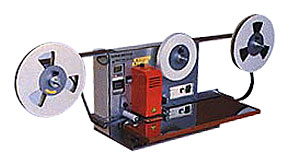

- This is a lightweight and compactly configured machine.
One person can carry it easily.
- It can be installed anywhere.
- Changing tape from one width to another is a snap.
- It is not necessary to conduct parallel-alignment of upper
seals and under seals.
|
| Specifications |
Taping method |
Embossed taping |
| Widths of tape handled |
56, 44, 32, 24, 16 (12, 8) mm. |
| Reel diameter |
Φ400 max. |
| Tape-feed method |
Cam-fed. Feed pitch: 24, 20, 16, 12, 8, 4 mm. |
| Direction of tape movement |
Right to left |
| Taping speed |
58 pieces/min. (60Hz), 52 pieces/min. (50Hz), depending
on the skills of the individual operator and condition of
the tape handled. |
| Method of changing tape widths |
Replacement of tape and heater blocks;
Adjustment of heater block receptacles |
| Drive of sealing head |
Cam-driven |
| Control of sealing temperature |
Temperature setter-controlled, from
room temperature up to 200°c. |
| Detection of missing teeth |
Optical sensor-detected |
| Options |
Floating detector, heater-fitted smoothing iron, top tape guide,
top tape collar (8, 12 mm), tape feed pitch spacer. |
| Driving power |
|
Power source
|
AC 100V |
|
Pneumatic pressure source
|
Not required. |
|
| Counter |
6-digit counter for the numbers of tape pre-set. |
| Method of control |
Microcomputer-controlled |
| Machine dimensions |
Width: 1060 mm.
Depth: 470 mm.
Height: 350 mm. |
Weight: 24kg.
(Machine stand: Optional) |
|
| Color |
Cream |
