| Features |

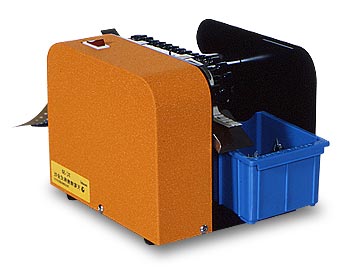

This machine is used to automatically
and continuously cut radially taped component parts. There is
no need whatsoever to replace molds, etc. Cutting dimensions are
variable. It is possible to achieve a 15.0mm-tape hole pitch using
optional parts.
- This machine can adjust the lead cut measure.
- This machine can cut big size components.
- As this machine does not need Air supply,there is no problem
of set-position.
|
| Specifications |
Power |
AC100V 50/60Hz |
| Cut ability |
Max.Φ0.8mm×3(Soft copper wires) |
| Machine tact |
| Pitch of tape hole |
The number of times of tape hole feed |
| 12.7mm |
150pieces/min.(50Hz)
180pieces/min.(60Hz) |
| 15.0mm |
135pieces/min.(50Hz)
162pieces/min.(60Hz) |
|
|
| Cut measure |
From center of tape hole:Min.9.5mm
to Max.19.5mm(Changeable type) |
| Machine size |
Approx.195(W)×300(D)×175(H)mm |
| Weight |
Approx.3.5kg |
| Color |
Y12-60X |
