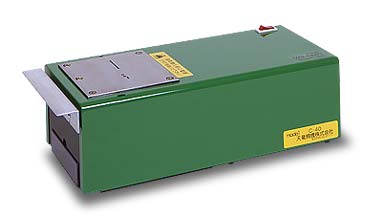

| Features |
- Just insert a part and pushing the switch lightly, a cut
is Produced.
- Thouth you usually cut at pre-station, usuing this machine,
you can quickly cut and insert in PCB.
- This machine is compact, so does not take up too much space.
- As this machine has simple mechanism, maintenance is easy.
- As this machine dose not need Air supply, there is no problem
of set-position.
|
| Specifications |
Power |
AC100V 50/60Hz |
| Cut ability |
Max.Φ1.0mm×20(Soft copper wires) |
| Machine tact |
2second./time |
| Cut size |
Min 2.5mm(Plate exchange by optional) |
| Machine size |
Approx.180(W)×428(D)×125(H)mm |
| Weight |
Approx.14kg |
|
